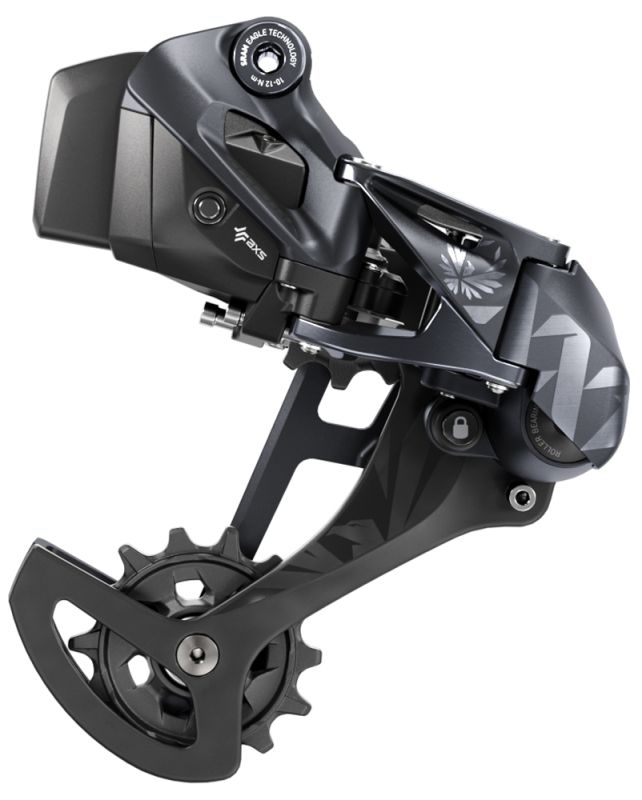

SRAM XX1 Eagle AXS 12-speed

More than a mechanical derailleur with a battery and a motor bolted on, the Eagle AXS™ derailleur is the brain of the whole AXS™ system. Trim it at set-up for zero rub, making the near-silent operation of Eagle™ even more stealth—all while improving drivetrain longevity. It features a shorter cage for 10mm more ground clearance, with more chain wrap on the cassette to sit slightly further forward, and further inboard from mechanical Eagle™. Instantaneous shifts from a single touch even while under World Cup-winning chain loads recorded in the heat of racing and affirmed in the test lab (No Box packaging).

Pioneering upon a proven Backbone: the XX1 Eagle AXS Rear Derailleur from Sram

The primary purpose of the Overload Clutch is to protect the derailleur’s shift motor, but it serves to protect your derailleur and derailleur hanger from damage as a by-product. A very helpful by-product.

At a glance, Eagle AXS™ brings the real benefits of wireless electronic shifting to the mountain bike. On a deeper level, it offers discerning riders unprecedented personalization and control of the drivetrain. On the bike and off. Deepening the relationship between machine and rider. This addition to the Eagle™ ecosystem enhances capability. Removes complexity. And provides riders an experience like never before imagined.

Both XX1 Eagle AXS™ and X01 Eagle AXS™ combine the proven, dedicated 1x backbone of Eagle™ with a connected wireless electronic derailleur and controller. With completely new inputs at the bar that initiate a shift with a touch. It’s an all-new derailleur that’s specifically designed and optimized to be motordriven instead of cable-actuated, to truly leverage what this allows. AXS™ powered components enable customization and scale to an individual rider’s liking via the AXS™ app. The pure shifting performance of Eagle AXS™ is the real difference maker. Shift under load, over the roughest terrain, uphill, or without changing your grip on the bar. Eagle AXS™ changes your level of control on the bike when you’re under pressure and pushing hard into the red. But more than that, it changes your relationship with the bike.

---

Features – XX1 Eagle AXS 12-speed Rear Derailleur

• XC focus and trail ready
• Carbon cage
• Ti hardware
• Rainbow colorway
• Eagle™ technology
• Overload Clutch protection
• AXS™ enabled componentry software that makes it possible to both program and personalize new SRAM and RockShox components
• System is completely water and dust proof to IP69K
• Eagle AXS™ is designed to work with X-DOME™ Eagle™ cassettes only, providing the most precise, silent, and reliable shift performance available

Product features

• Use: MTB
• Group: XX1 Eagle AXS
• Gears: 1 x 12
• Cage: long Cage
• Max. tooth: 52T
• Technology Highlights: X-Sync™, X-HORIZON™, AXS

Material

• Cage: Carbon
• Hardware: Titanium

Color

• black

---

Scope of delivery

• 1 x XX1 Eagle AXS Rear Derailleur 12-speed (No Box packaging)
• 1 x Chain Gap Tool

Battery is not included!

---

Technologies

CAGE LOCK™
With CAGE LOCK™ technology in the rear derailleur, wheel removal and installation—as well as chain installation—becomes faster and simpler. Just pushing the cage forward to create slack and lock it into place.

ROLLER BEARING CLUTCH™
ROLLER BEARING CLUTCH™ rear derailleurs deliver maximum drivetrain stability—even through the most punishing terrain. With ROLLER BEARING CLUTCH™ technology, derailleur bounce and chain slap are eliminated without sacrificing precision.

X-HORIZON™
The X-HORIZON™ rear derailleur’s ‘straight parallelogram’ design limits all movement to the horizontal axis, which makes ghost shifting impossible while also reducing shift force. For quicker, more exact shifting, the large upper pulley offset design maintains a constant chain gap across all gears.

X-SYNC™
SRAM X-SYNC™ 1X chain rings provide the highest level of performance and durability. The SRAM X-SYNC™ tall square teeth edges engage the chain earlier than traditional triangle shaped teeth. The sharp and narrow tooth profile, as well as rounded chamfer edges, help manage a deflected chain. To provide the best possible performance in muddy conditions, the X-SYNC™ chain rings have been designed with mud-clearing recesses for the inner chain links and rollers. Engineered in Germany, X-SYNC™ rings are an integral part of the SRAM 1X™ drivetrain.
