Configuration
| Frame: | Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity se |
| Frame material: | aluminium |
| Wheel size: | 29″ |
| Colour: | cherry red/nimbus grey |
| Fork: | Fox 38 29 Float GRIP EVOL Rhythm, 180mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| Rear Shock: | Fox DHX Performance 2P, 225x75mm. Settings: low-speed rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings |
| Travel: | 180 mm / 170 mm |
| Brakes: | Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Brake levers: | Sram DB8, tool reach adjust |
| Headset: | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Stem: | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Handlebar: | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Bar grips: | Onoff Twin, 1lock-on, 135mm |
| Saddle: | FIZIK Terra Aidon X5 145mm |
| Seatpost: | Onoff Pija dropper internal, diameter 31.6mm, S size: 405×95-125mm, M size 458×120-150mm, L size: 498×140-170mm, XL size: 498×140-170mm |
| Crankset: | Race Face Aeffect ebike, 165mm |
| Rear derailleur: | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Gear shifters: | Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click |
| Cassette: | Sram PG-1210, 11-50T, 12s |
| Chain: | Sram SX Eagle, 12s, Powerlock |
| Tyres: | Maxxis Assegai 29×2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| Wheelset: | e*thirteen E*Spec, IW30 Hookless, 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokes |
| Front hub: | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear hub: | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts |
| Spokes : | e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers |
| Display: | Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller |
| Battery: | Bosch Powertube 750Wh |
| Engine: | Bosch Performance Line CX (25km/h) Smart System |
| Pedals: | not included |
| Other details: | Derailleur hanger: Mondraker M068 |
| Maximum total weight allowed: | 150 kg (body weight + bike + equipment) |
| Weight: | 26.9 kg |
Drivetrain
Bosch – the smart system for e-bikes
At the start into the networked e-bike world, Bosch is equipping the top drive unit Performance line CX for the future. The well-known motor with a new connectivity is accompanied by Bosch’s brand-new PowerTube 750 battery – for longer riding pleasure with a significantly increased range. Beside the new Kiox 300 display, the new Mini Remote, as well as the system controller in the top tube of the frame, and the new 4A charger, the new smart system also includes the new eBike Flow app, which now is the center for customizing your e-bike! Thanks to the network, you can easily retrofit new functions or install updates “over-the-air”. Of course, you can also track your activities and customize the riding modes. The retrofittable “ConnectModule” is intended to increase security, enabling new options for e-bike theft protection. For example, an acoustic alarm can be triggered in the event of an attempted theft, and the bike can also be tracked if it has been stolen. Further features are planned to promise more riding fun and safety with the smart system by Bosch.
Why should I buy an e-bike with the smart Bosch system?
Your e-bike continues to evolve
Even after purchase, new functions can be retrofitted via “over-the-air” updates, so new riding fun is always guaranteed.
Your e-bike is networked
Thanks to the eBike Flow app, your e-bike is connected to your smartphone – and thus to the digital world! The app can be connected to the LED Remote via Bluetooth and you increase your riding fun thanks to smart, customizable functions.
Your e-bike battery lasts longer
Thanks to a capacity of 750 Wh, you’ll still be riding when others already have given up. Just enjoy the increased range and have fun on long tours and many trails.
Your e-bike looks really good
Every single component of the smart system by Bosch can be integrated beautifully and ensures a modern, puristic design.
Your e-bike benefits from perfect interaction
All of the smart system’s components are coordinated and harmonize perfectly – with each other and with you. Thanks to access to the digital world, you can automatically record and evaluate your activities and synchronize them with your favorite apps.

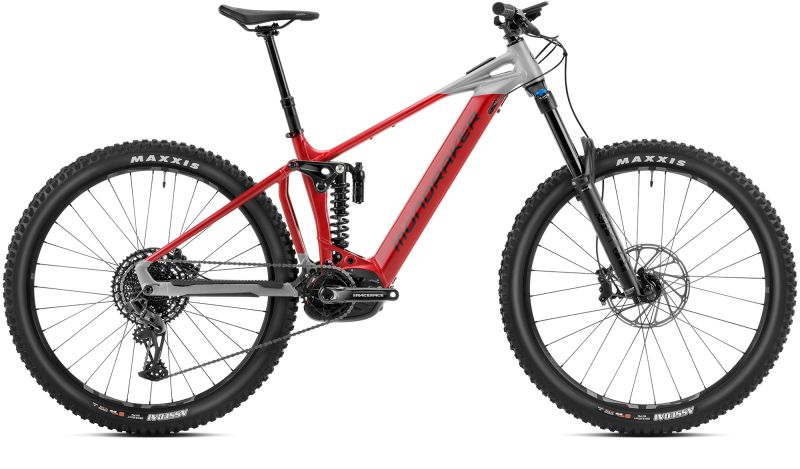

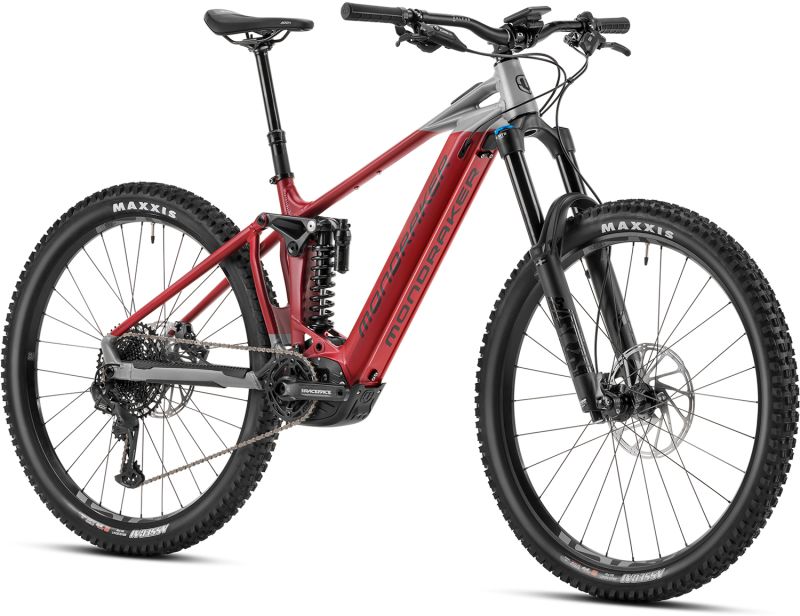

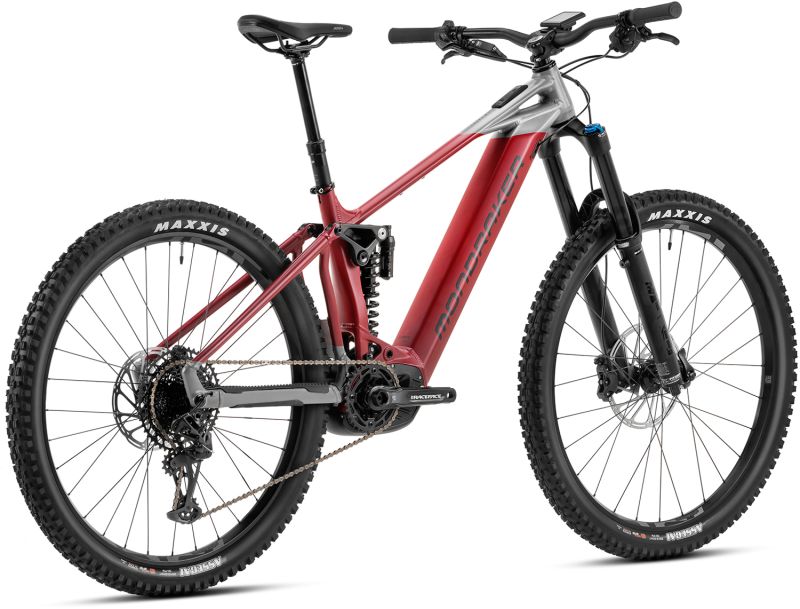

Features – Mondraker LEVEL R
180 mm travel at the front and 170 mm at the rear provide generous suspension reserves. The brand new Bosch drive system is perfectly integrated into the frame and convinces with efficient performance and lots of power. The Boost standard makes the e-bike future-proof and enables stable 29″ wheels. The 12-speed drive allows you to conquer any mountain at a comfortable cadence. Thanks to SRAM’s powerful 4-piston brake with large 200 mm brake discs, you can safely and comfortably descend any mountain. And to make sure you can conquer the next mountain and the one after that, the Bosch battery delivers a capacity of 750 Wh. Apropos battery – it’ s elegantly placed in the down tube and ensures a slim silhouette.
Technologies
ZERO SUSPENSION SYSTEM
Zero is Mondraker’s proprietary most efficient, best performing and super capable suspension system. Zero is a dual link design with the shock floating between the two suspension links and compressed from both ends. This makes the rear suspension extremely sensitive on small bumps and big hit capable.
Zero superior technologies’ main advantages are Zero power loss -a completely stable ride when pedalling-, Zero pedal kickback-minimum chain growth throughout the suspension travel-, Zero brake jack –isolated braking and suspension forces- and what we call Zero bumps, its great ability to soak up any type of bump keeping the rear wheel efficiently planted on the ground.
FORWARD GEOMETRY
Mondraker’s Forward Geometry has proven to be the geometry benchmark for high-end performance mountain bikes nowadays and this is one of our proprietary most unique leading technologies to date.
Forward Geometry main advantages are an increased safety and confidence riding steep chutes even at high speeds, more reactive, precise and direct handling, more uphill precision and more stability in technical and rough terrain with better grip and improved control overall. This season we are offering our largest FG models collection.
Based on a geometry with longer reach and longer top tubes, riding position with FG30 mm stem is perfectly balanced for each bike category and application. Extra top tube length increase is compensated with our proprietary FG30 stem on all FG models, on every frame size. Front center length increases thus making the ride more confidence-inspiring, allowing you to ride faster easier and, above all, a more enjoyable riding experience.
STEALTH ALLOY
Stealth Alloy encompasses all processes in the creation of the frame, from the industrial design to the specific production of each of its tubes with the calculation of the most precise details. Each tube and part is carefully designed to carry out a specific function while striving to achieve the lowest possible weight. Stealth technology is evolving every year with optimised shapes and internal updates to deliver the best riding experience in our aluminium frames.
Please note that pedals are not included!
