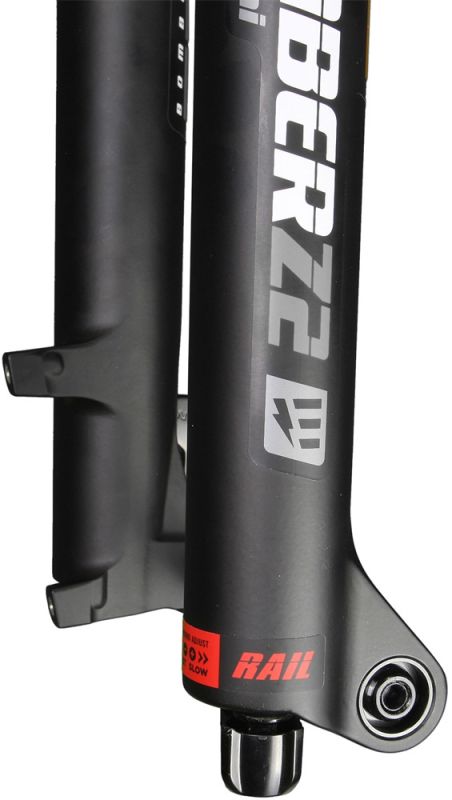

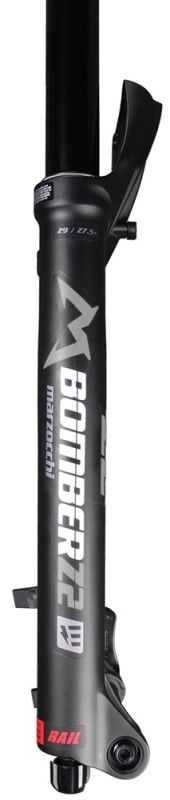

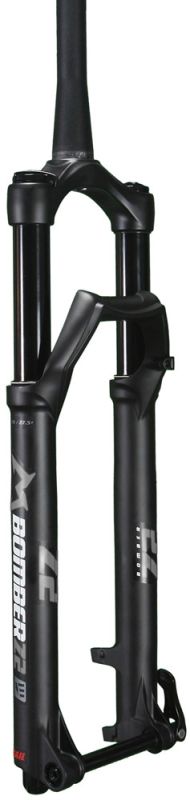

Marzocchi Bomber Z2 29″ 130 Rail Sweep-Adj E-Optimized Tapered Boost

The Marzocchi Bomber Z2 Tapered Boost with Rail Sweep Damper is a lightweight 29″ suspension fork with 130mm travel, specially optimised for e-bikes with 34mm stanchions and EVOL air spring for smooth response – developed for trail and all mountain riders.

Simple adjustments with high stiffness and durability: The Marzocchi Bomber Z2 29″ 130 E-Optimized Rail Sweep-Adj Tapered Boost

Not that long ago mountain bikes were simple – suspension opened up more terrain and, more importantly, it meant more fun. The original Z2 was there for the mountain bike suspension revolution –you simply mounted it on your bike and hit the trails. Less time prepping and fixing meant you could just focus on the ride. Twenty years later, that same DNA lives on in the new Marzocchi Z2; it’s ready to shred with smooth and plush suspension. The new from-the-ground-up Rail damper combines low maintenance with intuitive ease of use and impressive on-trail performance. The top-of-fork simple sweep adjuster from firm to open can lock out the fork or fully open the system with plenty of positions in between. The Z2 – it just makes everything easy.

E-Optimized features improved tuning, plus a reinforced chassis designed for a maximum system weight of up to 169kg.

---

Features – Marzocchi Bomber Z2 29″ 130 E-Optimized Rail Sweep-Adj Tapered Boost

• Marzocchi Bomber Z2 E-Optimized chassis with 34mm upper tubes
• Rigid dip tube unit with M-shaped bridge for maximum tyre clearance
• Improved 15QR x 110mm Boost thru axle system with quick release lever
• FLOAT EVOL air spring with positive and negative spring, provides extra rich suspension
• RAIL damper technology

Product features

• Use: Trail, All Mountain
• Category: E-Performance
• Wheel size: 29″
• Spring: Air
• Damping: Rail sweep, open/firm with fine adjustment
• Adjustments:
  • Lowspeed rebound: 18 clicks
  • Highspeed rebound: Internal
  • Lowspeed compression: External, via a lever, stepless
  • Highspeed compression: External, via a lever, stepless
• Steerer: Tapered 1.5″ to 1 1/8″
• Steerer length: 264mm
• Upper Tubes: 34mm
• Disc brake mount: Post Mount (PM7 – Direct Mount 180mm)
• Maximum Rotor Size: 203mm
• Drop out: 15x110mm Boost Thru Axle with QR (quick-release lever)
• Max. tire dimension: 29 x 2.6″
• Axle to Crown: 552.5mm
• Max. System weight: 169kg
• Travel: 130mm
• Offset: 44mm

Material

• Steerer: Aluminum
• Crown: Aluminum
• Lowers: Magnesium
• Upper Tubes: Aluminum

Color

• matte black

Weight

• up to 2020g (manufacturer information)

---

Scope of delivery

• 1 Marzocchi Bomber Z2 130 E-Optimized 29″ Rail Sweep-Adj Tapered Boost
• 1 Boost Thru Axle 15x110mm with Quick Releas Lever
• 1 Cable Routing

Fork pump not included!

---

Technologies

EVOL
EVOL increases negative air spring volume, specifically to provide optimum small bump sensitivity.
